Industrial automatic cassava starch dewatering machine

FOB Reference Price:Get Latest Price
$5,000.00 - $30,000.00 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Place of Origin:
Henan, China (Mainland)
Brand Name:
Goodway
Model Number:
GD-TS-05
Type:
cassava starch processing
Voltage:
380V/50Hz 3Phase
Power(W):
7-25kw
Warranty:
1 Year
After-sales Service Provided:
Field installation, commissioning and training
Name:
Industrial automatic cassava starch dewatering machine
Application:
cassava starch dewatering
Yield:
0.2-0.3t/h/m2
Machine Materials:
Stainless steel
Certification:
ISO9001:2015
Supply Ability
Supply Ability:
50 Set/Sets per Month cassava starch dewatering machine
Packaging & Delivery
Packaging Details
Standard wooden box
Port
China main ports all available
Video Description
Product Description

1. Application:

Cassava & potato starch and cassava flour dewatering.

2. Product Introduction:

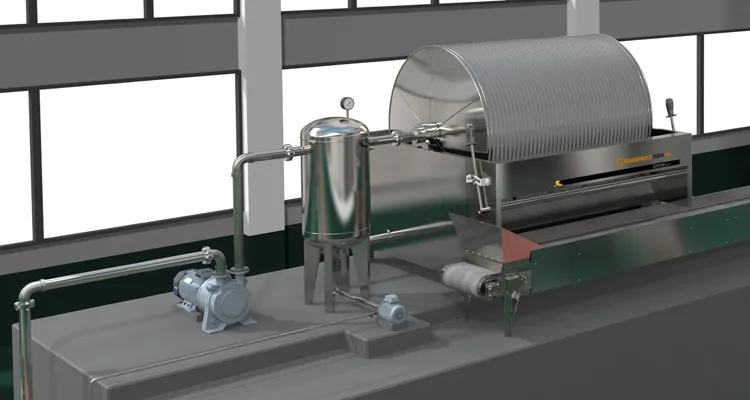

Rotary vacuum filter, rotary vacuum dehydrator, cassava dewatering machine, cassava starch dewatering machine for cassava starch processing. Widely used for the dehydration in starch, modified starch, medicine, food, chemical industry etc.

3. Product Advantage:

(1) The equipment is stable, compact, high efficient with a low energy consumption;

(2) Special designed stainless steel screen cloth and support-gauze ensure a higher pass rate and efficiency;
(3) Hollow structure of the dehydration drum ensuring uniform stability and lower moisture content of dehydrated materials can save energy consumption of the drying section;
(4) Using elastic scraper can get high starch detachment rate;
(5) Using stepless speed regulation for Rotary drum can adjust the processing capacity conveniently according to the different properties of starch;
(6) Strong and stable frame structure, all stainless steel;
(7) The bottom of bearing is connected with a unique oil pan, ensuring higher hygiene requirements;
(8) The integral structure of vacuum tank and vacuum pump can save installation space and time;
(9) Adopting the suction filter mode, relative to other dehydration way, can improve the purity degree of starch, and also with no dissection phenomenon;
(10) Continuously failure free operation ensures the continuity of the whole system production;

(11) No need of artificial discharging, reduce the labor intensity.

4. Technical Parameters:

Model number
GD-TS-03
GD-TS-05
GD-TS-06
GD-TS-08
Filtration area
3m2
5m2
6m2
8m2
Vacuum degree
>-0.099
>-0.099
>-0.099
>-0.099
Final moisture content
≤40%
≤40%
≤40%
≤40%
Feed concentration
10-17BE°
10-17BE°
10-17BE°
10-17BE°
Output
0.2-0.3t/h/m2
0.2-0.3t/h/m2
0.2-0.3t/h/m2
0.2-0.3t/h/m2
Power
7kw
13.2kw
20.7kw
24.2kw
Dimension(L×W×H)(mm)
1500×1400×1600
1500×1800×1600
1800×1900×1900
1800×2200×1900
