Factory price cassava starch drying machine

FOB Reference Price:Get Latest Price
$15,000.00 - $95,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
GD-HG-2000
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Henan, China (Mainland)
Brand Name:
Goodway
Type:
starch drying machine
Warranty:
1 Year
After-sales Service Provided:
Field installation, commissioning and training
Application fields:
cassava starch or flour processing plant
Name:
Factory Price cassava starch drying machine
Application:
cassava starch or flour drying
Yield:
2Tons/Hour
Machine Materials:
Stainless steel
Supply Ability
Supply Ability:
50 Set/Sets per Month cassava starch drying machine
Packaging & Delivery
Packaging Details
Standard wooden box
Port
China main ports all available
Video Description
Product Description

1. Application:

Cassava & potato starch and cassava flour drying.

2. Product Introduction:

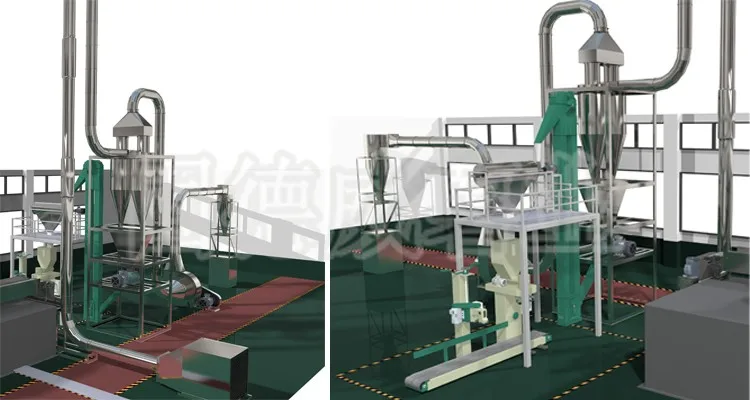

Airflow flash dryer, cassava starch drying machine, cassava flour drying machine for cassava starch and flour processing. Widely used for the drying in starch, modified starch, medicine, food, chemical industry etc particle materials.
Starch factory at present normally adopt airflow drying (also called flash drying), the whole process time are completed in an instant, so the internal moisture of the starch granules have been dry before gelatinization, the pasting or degradation phenomenon will not occur. Airflow drying is cocurrent flow drying process, namely, the cocurrent flow of wet powder material and the heat flow, consists of heat transfer and mass transfer process. When wet starch with the hot air in contact, hot air transfer heat to the surface of the wet starch, again from surface to interior, the process is the heat transfer process; At the same time, the moisture in wet starch diffusion from the material inside to the surface of starch by liquid or gaseous, and then diffusion into the hot air from the starch surface through the gas film, it is a mass transfer process. By the high temperature air and wet starch balanced heat exchanging in the drying tube, the drying starch become dry powder, and then packing and warehousing after cooling.

3. Product Application:

(1) Hot air sucked in along with wet starch(less than 40% moisture content) fed in;
(2) Digital control to make sure the powder can not be burnt;
(3) Flash speed powder go through the drying tower, higher than 10 meters;
(4) Dry powder collected from the collector, but tailings are collected by another end to make sure completely collection;
(5) Starch powder needs to be screened again to make sure no leaves or other things got in;
(6) Connected with automatic weighing and packaging machine;
(7) Aluminum or stainless steel can be selected;
(8) 24 Hours continuous work available;
(9) Moisture content less than 13% for the ready-to-pack powders;
(10) Heat resource can be built by yourself or use steam boiler;
(11) We do not offer bags for packaging, the weighing scope is 5kg-50kg adjustable.

4. Technical Parameters:

Model number
GD-HG-300
GD-HG-500
GD-HG-1000
GD-HG-2000
Output yield
300kg/hour
500kg/hour
1000kg/hour
2000kg/hour
Power
13kw
22kw
30kw
60kw
Voltage
380V/50Hz
380V/50Hz
380V/50Hz
380V/50Hz
Final water content
≤13%
≤13%
≤13%
≤13%
Machine Material
Stainless steel
Stainless steel
Stainless steel
Stainless steel
Cover area
30-40m2
30-40m2
40-50m2
70-80m2
