Big capacity hydraulic press cassava dewatering machine

FOB Reference Price:Get Latest Price
$3,500.00 - $9,500.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
GD-HP-600
Report Suspicious Activity
Overview
Quick Details
Brand Name:
Goodway
Place of Origin:
Henan, China (Mainland)
Warranty:
1 Year
After-sales Service Provided:
Field installation, commissioning and training
Application fields:
cassava mash dewatering
Name:
Big capacity hydraulic press cassava dewatering machine
Application:
cassava mash dewatering
Yield:
300-400Kgs/Hour
Machine Materials:
Stainless steel
Type:
flour dewatering machine
Supply Ability
Supply Ability:
50 Set/Sets per Month cassava dewatering machine
Packaging & Delivery
Packaging Details
Standard wooden box
Port
China main ports all available
Video Description
Product Description

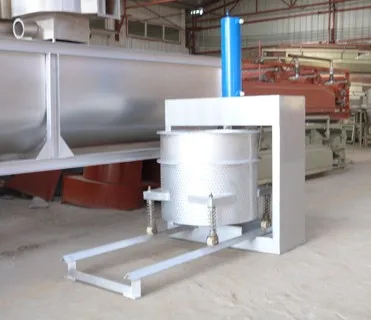

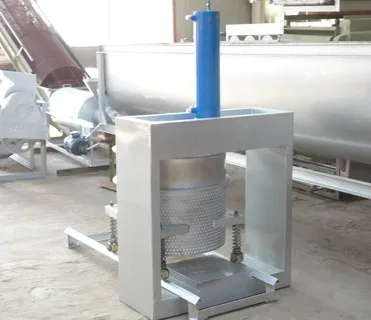

1. Structure Feature:

This kind of vertical single frame press machine is composed of the press box, oil cylinder, press frame, press plate, electro-hydraulic control box and other components. The oil cylinder flange connects the oil cylinder and press frame to comprise a whole frame, the piston rod connects with the press plate, the press frame is made of welded steel plate, there are pulleys under the press box and connect to the press box by springs, The catheter tray and the liquid collection tank are installed at the bottom of the press box.

2. Working Principle:

The electro-hydraulic control box outputs hydraulic oil to control the press plate move up and down, to achieve the materials pressing and automatic pressing force maintenance.

3. Technical Parameters:

Model No.
GD-HP-400(Single Cylinder)
GD-HP-600(Double Cylinder)
Machine Material
Stainless steel
Stainless steel
Capacity
200-300KG/H
300-400KG/H
Press Frame Volume
400L
600L
Voltage
380V&50/60Hz 3Phase
380V&50/60Hz 3Phase
Power
2.2KW
3.0KW
Cylinder Pressure
20MPa/50t
20MPa/50t
Interior Casing Dimension
1000×400×1200mm
1200×600×800mm
Dimension(L X W X H)
1250×700×1250mm
1360×1600×1500mm
Weight
500KG
800KG
