Food grade cassava grating machine for sale

FOB Reference Price:Get Latest Price
$3,000.00 - $10,000.00 / Pieces | 1 Piece/Pieces (Min. Order)
Model Number:
GD-G-660
Report Suspicious Activity
Overview
Quick Details
Brand Name:
Goodway
Place of Origin:
Henan, China (Mainland)
Warranty:
1 Year
After-sales Service Provided:
Field installation, commissioning and training
Application fields:
Flour mill
Name:
Food grade cassava grating machine for sale
Application:
cassava flour grating
Yield:
3-6Tons/Hour
Power consumption:
200Kw
Certification:
ISO9001:2015
Machine Materials:
Stainless steel
Voltage:
380V/50Hz 3Phase
Type:
cassava grating machine
Supply Ability
Supply Ability:
50 Set/Sets per Month cassava grating machine
Packaging & Delivery
Packaging Details
Standard wooden box
Port
China main ports all available
Video Description
Product Description

1. Application:

Grating the cassava into slurry.

2. Product Introduction:

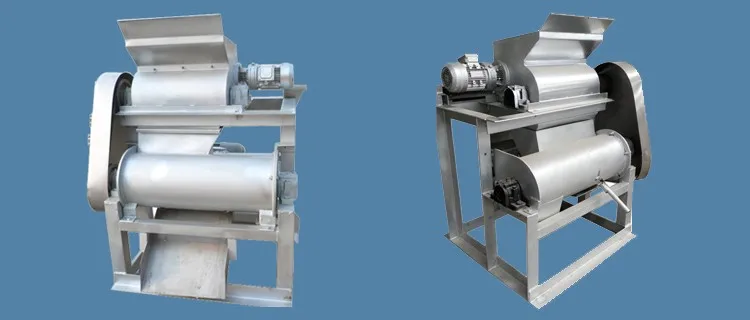

Cassava grater machine, cassava grating machine, cassava grinder, cassava grinding machine for cassava flour and garri processing. Cassava grater machine adopts two level pulverizing, the first level is rasp-type pulverizing, and the second level is hammer-type pulverizing, the combination of two levels sufficiently makes up their individual defects. It can be used for grating raw materials such as cassava, potato, sweet potato, yam etc. The efficiency can be improved by 45%-90% comparing to universal hammer mill.

3. Product Features:

(1) The pulverizing cavity looks like a dropping cave, which can prevent the circumfluence of the raw material.

(2) The hidden rotors can pulverize the materials completely.
(3) Two level pulverizing: rasp-type and hammer-type pulverizing with super efficiency.
(4) The distance between sifter and sinker is adjustable, which can make rough pulverizing, fine pulverizing and micro pulverizing are available in one machine.
(5) Easy-open door makes maintains convenient.
(6) Sieve will be bounded up after pressing. This enables the replacement much easier, and can close much tighter.

4. Technical Parameters:

Model No.
GD-G-660
GD-G-900
Machine Material
Stainless Steel
Stainless Steel
Capacity
3Tons/Hour
6Tons/Hour
Voltage
380V & 50/60Hz 3Phase
380V & 50/60Hz 3Phase
Power
11KW
15KW
Weight
350KG
450KG
Dimension(L ×W ×H)
1300×1000×1400mm
1300×1300×1400mm
Company Information

Nanyang Goodway Machinery & Equipment Co., Ltd. has been the original manufacturer and supplier of cassava processing machine since 1991, which covering more than 40,000 square meter factory area, fixed assets of RMB 8.0 million and annual production value of RMB 60 million, own 35 national patents in the field of potato and cassava processing machine.

The products of Nanyang Goodway Machinery & Equipment Co., Ltd. have been sold to more than 50 countries and areas, including Africa, South America, Middle Asia, East Europe and Southeast Asia, etc. And the growing trend still keeps at high speed with our better R&D, quality and service, we will try our best to supply better and better mechanical equipment solutions to satisfy our customers all over the world.


Certifications

Nanyang Goodway Machinery & Equipment Co., Ltd. adopts the advanced mechanical production line and internal management system, with the international standards as development objectives, pass the ISO9001:2015 certificate of quality system, ensuring all products delivered are 100% qualified. Materials and finished goods are inspected in strict compliance with standards.
